12RA Series Angle Grinder Series (0.3 H.P.)



Industrial Benefits:

• Small compact tool design reaches remote areas.
• Front exhaust. Heavy-duty 3 piece collet is available with 1/4" or 1/8" insert.
• Spiral-bevel gears provide smooth operation and long life.
• Lightweight aluminum housing.
• Choice of lever or lockout lever throttle.
• Small Right Angle Head for Limited Space Sanding and Grinding.
• Applications Include: Weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.
• The model 12RA Right angle air grinder has a smaller more compact design for light grinding applications.

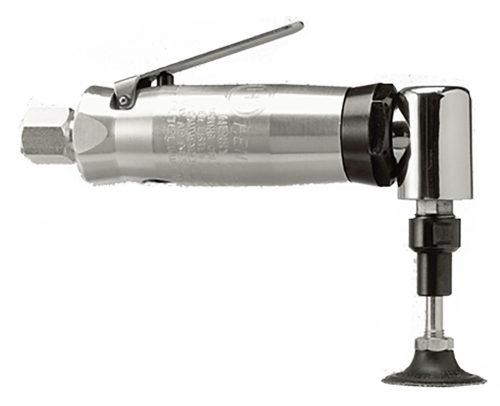

12RA Angle Grinder with Front Exhaust (0.3 H.P.)

Model 12RA Angle Air Grinder features a FRONT exhaust and pictured with a standard lever throttle.  This grinder is very maneuverable for polishing and surface contouring.

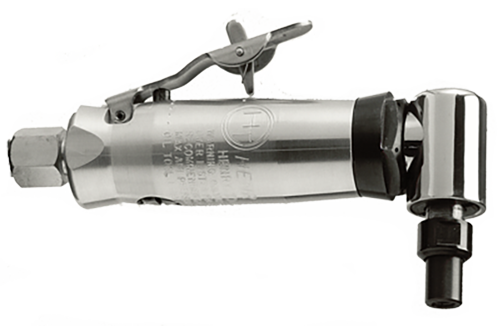

Model 12RAK Angle Grinder with Safety Lever throttle

Model 12RAK Angle Air Grinder featuring a safety lockout lever throttle.



12RA Series Angle Grinder Specifications

Model	Throttle Type	Exhaust Direction	Speed	Collet Size
12RA	Standard Lever	Front	18,000 or20,000R.P.M.	1/4" or 1/8" collet insert (1/4" is standard)
12RAK	Safety Lockout Lever	Front	18,000 or20,000R.P.M.	1/4" or 1/8" collet insert (1/4" is standard)



4401RA Series Right Angle Air Grinder and Sander (0.9 H.P.)



Industrial Benefits:

• An industrial right angle grinder ready to tackle your toughest grinding surface preparation needs.
• (0.9 H.P) and a SIDE exhaust
• One piece case design for a more comfortable grip. Geared to run at (9000 to 11000 R.P.M.) (11000RPM is standard). Taller gears provide more power at a lower RPM.
• Tool is available with either a 3/8-24 thd spindle or 5/8-11.   An internal  1/4" collet spindle is also available. (See the specifications chart)
• A stainless steel right-angle head that resists corrosion.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum or Steel case.
• Adjustable exhaust direction side exhaust.
• Choice of lever or lockout lever throttle.
• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.
• Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.



4401RA Angle Grinders (0.9 H.P.)

Model 4401RASK Angle Air Grinder with safety lockout lever and  4" guard.. Featuring a one piece comfortable grip case. SIDE EXHAUST .(11000RPM Standard speed).

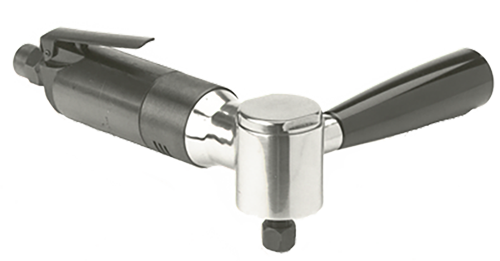

4401RASC Angle Grinder with Internal 1/4" Collet Spindle

Model 4401RACSK steel cased angle grinder shown with 1/4"collet and carbide burr installed.  (0.9 H.P) and a SIDE exhaust, (11000RPM Standard speed). (with Safety lockout lever throttle.)(sample) (Side Handle removed for clarity)





4402RA Series Right Angle Air Grinder and Sander (0.9 H.P.)



Industrial Benefits:

• Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.
• (0.9 H.P) and a SIDE exhaust,
• One piece case design for a more comfortable grip.
• Geared to run at (13500 R.P.M.)
• Tool is available with either a 3/8-24 thd spindle or 5/8-11. An internal 1/4" l collet spindle is also available. (See the specifications chart)
• A stainless steel right-angle head that resists corrosion.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum or Steel case.
• Adjustable exhaust direction side exhaust.
• Choice of lever or lockout lever throttle.
• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.
• Recommended working air pressure: 90 p.s.i.
  Working Air Consumption: 25 CFM (11.8 L/S)

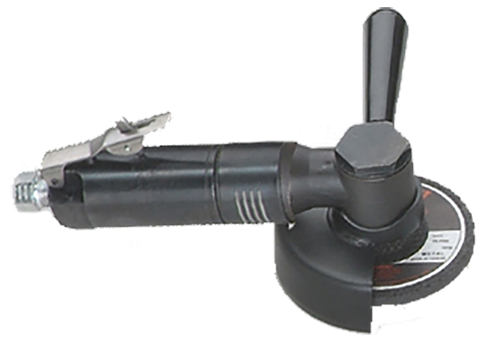

4402RASK Angle Grinders (0.9 H.P.) with One piece case design.

Model 4402RASK Angle Air Grinder with safety lockout lever and 4" guard.. Featuring a "one-piece case" design. (13500 RPM Standard speed).

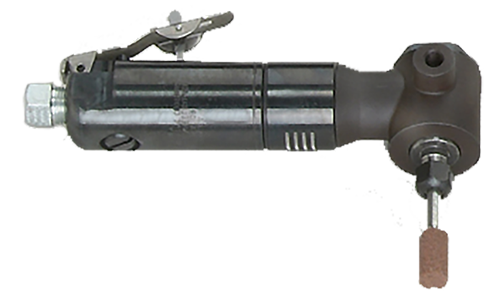

4402RASC Angle Grinder with Internal 1/4" Collet Shaft

Model 4402RACSK steel cased angle grinde (0.9 H.P) and a SIDE exhaust. This model features a  built-in 1/4"collet. This tool is suitable for use with carbide burrs. (13500 RPM Standard speed). (with Safety lockout lever throttle.)



4402RA Series Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Spindle Type
4402RA	Lever	Alum	3/8-24 x 0.58 Inch (15mm)
4402RAZ	Lever	Alum	5/8-11 x 0.98 Inch (25mm)
4402RAC	Lever	Alum	1/4 Inch Built-In Collet
4402RASK	Safety Lockout Lever	Steel	3/8-24 x 0.58 Inch (15mm)

** Add Letter "K" to model number for Safety Lockout Lever



44RA Series Right Angle Grinders



Industrial Benefits:

• Henrytools traditional 44RA series grinder with a "THICK" two-piece case design for tool operators with larger hands.
• (0.9 H.P) and a SIDE exhaust,
• Two piece design also provides a platform for easier tool maintenance.
• Geared to run at 11000RPM standard.
• Taller gears provide more power at a lower RPM.
• An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
• Features a stainless steel right-angle head that resists corrosion and is extra strong.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum or Steel case.
• Adjustable exhaust direction SIDE  exhaust.
• Choice of lever or safety lockout lever throttle to avoid accidental startups.)
• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.

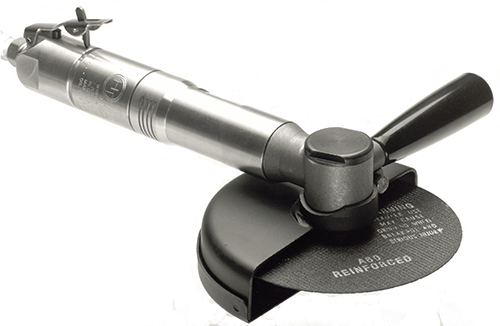

44RAK Angle Grinder Series (0.9 H.P.)

Model 44RA right angle grinder with a powerful (0.9 H.P) motor and runs at 11,000 RPM standard free speed. (pictured with a 4" guard and standard lever throttle.) (Aluminum case shown.)



44RA Angle Grinder Series

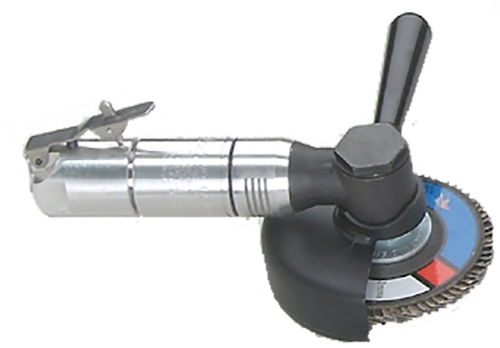

Model 44RAZK right angle grinder with a 5/8-11 threaded spindle shown with 5" guard and safety lockout throttle lever. (Aluminum case shown.) See chart for spindle sizes.

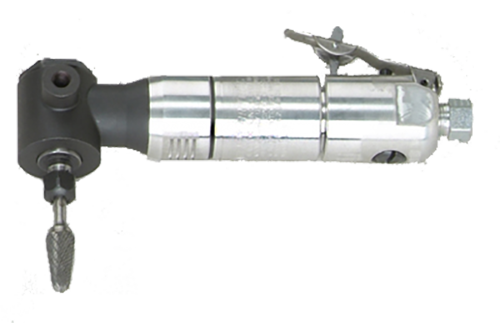

44RACK Angle Grinder with Built-In Collet

Model 44RACK Angle Grinder with built-in 1/4" collet spindle for use with carbide burrs and mounted points. (11000 RPM) (shown with safety lockout lever throttle). (Side Handle removed for clarity)

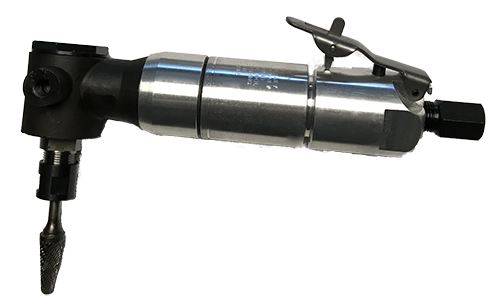

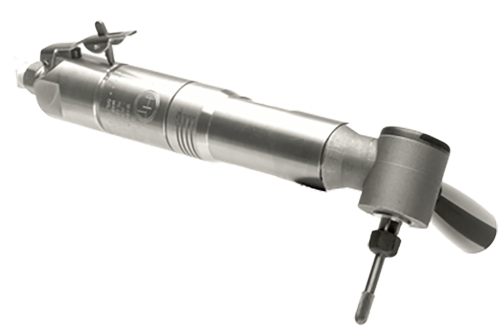

44RAD Angle Grinder with Erickson Type Collet

Model 44RADK Angle Grinder with Erickson style collet for use with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.    (shown with safety lockout lever throttle). (Side Handle removed for clarity)



44RA Series Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Spindle Type
44RA	Lever	Alum	3/8-24 x 0.58 Inch (15mm)
44RAS	Lever	Steel	3/8-24 x 0.58 Inch (15mm)
44RAC	Lever	Alum	1/4 Inch Built-In Collet
44RAZ	Lever	Alum	5/8-11 x 0.98 Inch (25mm)
44RAD	Lever	Alum	Erickson Collet Style Spindle
44RADS	Lever	Steel	Erickson Collet Style Spindle

** Add Letter "K" to model number for Safety Lockout Lever



45RA Series Right Angle Grinders



 Industrial Benefits:

• Henrytools traditional 45RA series grinder with a "THICK" two-piece case design for tool operators with larger hands.
• (0.9 H.P) and a SIDE exhaust,
• Adjustable exhaust direction side exhaust.
• Two piece design also provides a platform for easier tool maintenance.
• Geared to run at 13500RPM standard.
• Aluminum or Steel case.
• Features a stainless steel right-angle head that resists corrosion and is extra strong.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Choice of lever or safety lockout lever throttle to avoid accidental startups.) Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.



45RA Series Angle Grinders (0.9 H.P.) 13500 RPM Standard

Model 45-RAZ Aluminum case grinder shown with 5/8-11 threaded spindle and 5" guard. Tool runs at a standard speed of 13500 RPM. (choice of either an Aluminum or Steel case) Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard. For a tool with a Safety Lock Lever throttle add a letter "K" to the end of the model number.

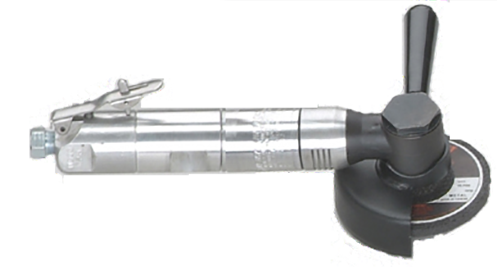

45RA Angle Grinde (0.9 H.P.) with 4" Guard

Model 45-RA Aluminum cased grinder show with 3/8-24 spindle and 4" guard. Tool runs a standard speed of 13500 RPM. (choice of either an Aluminum or Steel case)

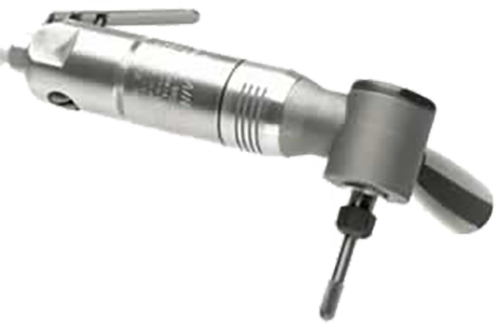

45RAC Angle Grinder with Built-In 1/4" Collet

Model 45-RAC Angle grinder with 1/4" Built-in collet spindle. For use with carbide burrs, mounted points, etc. Tool runs at a standard speed of 13500 RPM. (choice of either an Aluminum or Steel case)



• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.
• For a tool with a Safety Lock Lever throttle add a letter "K" to the end of the model number.



44ARA Series Angle Grinder and Sander  (0.9 H.P.)



Industrial Benefits:

• The Henrytools 44ARA Series angle grinders feature a narrower "one piece" case design for a more comfortable grip. for smaller hands.
• Geared to run at (9000 to 11000 R.P.M.) (11000RPM is standard).
• Taller gears provide more power at a lower RPM.

• An industrial right angle grinder ready to tackle your toughest grinding surface preparation needs.
• Tool is available with either a 3/8-24 thd spindle or 5/8-11. See the chart below for the model you'd like to order.
• A stainless steel right-angle head that resists corrosion and is extra strong.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum or steel case.
• Adjustable exhaust direction side exhaust.
• Choice of lever or lockout lever throttle.)

Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.

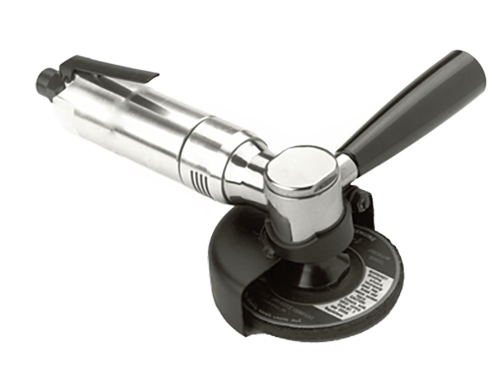

44ARA Angle Grinder Series (11000 RPM)

Model 44ARAS a lightweight "one piece" rugged  steel cased angle grinder with a 4"Guard (11000RPM Standard speed). (sample)



44ARACS Angle Grinder (11000RPM) with built-in collet

Model 44ARACSK steel one piece cased angle grinder shown with 1/4" INTERNAL collet. (pictured with  carbide burr installed.) (11000RPM Standard speed). (with Safety lockout lever throttle.)(sample) (Carbide burrs sold seperately)

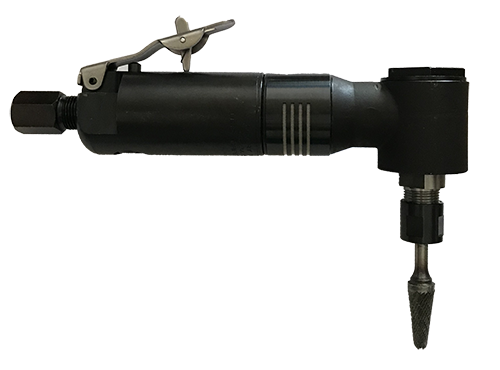

44ARADSK Angle Grinder with Erickson Style Collet

Model 44ARADSK steel one piece case angle grinder with Safety Lock lever Throttle.  Features an Erickson style collet with your choice of a 1/4",  3/4" or 5/16" collet insert.  (pictured with carbide burr installed.) (11000RPM Standard speed). (sample) (Carbide burrs sold seperately)(Choice of rugged Steel or Lightweight Aluminum case).



44ARA Series Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Speed	Spindle Type
44ARA	Lever	Alum	9000 to 11000 R.P.M.	3/8-24 x 0.58 Inch (15mm)
44ARAZ	Lever	Alum	9000 to 11000 R.P.M.	5/8-11 x 0.98 Inch (25mm)
44ARAC	Lever	Alum	9000 to 11000 R.P.M.	1/4 Inch Built-In Collet
44ARASK	Safety Lockout Lever	Steel	9000 to 11000 R.P.M.	3/8-24 x 0.58 Inch (15mm)
44ARASDK	Safety Lockout Lever	Steel	9000 to 11000 R.P.M.	Erickson Collet Spindle choice of 1/8", 1/4", 5/16", 3/8" collet insert
44ARADK	Safety Lockout Lever	Alum	9000 to 11000 R.P.M.	Erickson Collet Spindle choice of 1/8", 1/4", 5/16", 3/8" collet insert

• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard.
• For a tool with a Safety Lock Lever throttle add a letter "K" to the end of the model number.





45ARA Series Angle Grinders (0.9 H.P.)



Industrial Benefits:

• Featuring a slim one piece case design for a more comfortable grip.
• Geared to run at (13500RPM-14000RPM) (13500 RPM is standard).
• An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
• A stainless steel right-angle head that resists corrosion and is extra strong.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum or steel case.
• Adjustable exhaust direction side exhaust.
• Choice of standard lever or Safety lockout lever throttle.
• Important: (Specify guard size when ordering. ) Choice of either a 3", 4", 5" or 6" Wheel Guard.

45ARA Angle Grinder Series (13500 RPM)

Model 45ARA with slimmer style steel case and a 4"Guard (13500RPM Standard speed). (sample) (See chart for spindle types)



45ARA Angle Grinder with Built-In 1/4" Collet

Model 45ARAC Angle Grinder with built-in 1/4" collet shaft for use with mounted points and carbide burrs. (pictured with safety lockout lever throttle)(side handle removed for clarity)





45ARAD Angle Grinder with Erickson Style Collet

Model 45ARADSK steel one piece case angle grinder with Safety Lock lever Throttle. Features an Erickson collet with your choice of a 1/4", 3/4" or 5/16" collet insert. (pictured with carbide burr installed.) (13500RPM Standard speed). (sample) (Carbide burrs sold seperately)(Choice of Steel or Lightweight Aluminum case).



** Add Letter "K" to model number for Safety Lockout Lever



457RA "Governed" slow speed Angle Grinders (0.9 H.P.)



Industrial Benefits:

• Model 457RA Angle grinder/ sander is governor controlled for maximum power at a lower RPM.
• (7000 RPM - 11000 RPM) (Customer must specify speed desired).
• Adjustable side exhaust.
• Removable side handle.
• Spiral-beveled gears provide smooth operation and long tool life.
• Choice of multiple spindle types.  (3/8"-24 or 5/8"-11 or Erickson type collet spindle)
• Choice of lever or lockout lever throttle.
• Aluminum or steel case.
• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" or 5" Guard.



457RA Angle Grinder "Slower Speed"

Model 457RA "Governed " slower speed" angle grinder with an Aluminum case and safety lockout lever throttle.  (Runs 8000RPM standard speed) (See specifications chart for multiple models available)



457RAD "Governed" Slower Speed Angle Grinder with Erickson Collet

Model 457RAD "Governed" slower speed angle grinder with an Aluminum case and safety lockout lever throttle.  (Pictured with an Erickson collet)  Perfect for running slow speed flap wheels, etc.  (Runs 8000RPM standard speed) (See specifications chart for multiple models available). Features and Erickson collet with your choice of a 1/4",  3/4" or 5/16" collet insert.



Model 457RA "Governed" slower speed Angle Grinders Specifications

Model	Throttle Lever Type	Case Material	Speed	Spindle Type
457RA	Standard Lever	Alum	(7000 RPM - 11000 RPM)	3/8-24 x 0.58 Inch (15mm)
457RAZ	Standard Lever	Alum	(7000 RPM - 11000 RPM)	5/8-11 x 0.98 Inch (25mm)
457RAD	Standard Lever	Alum	(7000 RPM - 11000 RPM)	Erickson Collet Spindle with 1/4",  3/4" or 5/16" collet insert.
457RASK	Safety Lockout Lever	Steel	(7000 RPM - 11000 RPM)	3/8-24 x 0.58 Inch (15mm)

** Add Letter "K" to model number for Safety Lockout Lever

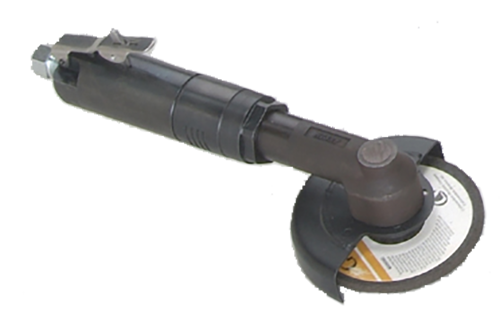

46RA Series Right Angle Grinders (0.9 H.P.)



Industrial Benefits:

• Smaller head for the harder-to-reach applications. The small stainless steel right angle head resists corrosion and abrasion.
• NO Side Handle provides for additional room in close quarter grinding.
• Tool is nicely balanced for one-handed grinding operations.
• Runs (13000-15000 RPM). (13500 RPM is standard).
• Spiral-beveled gears provide smooth operation and long life.
• Aluminum or rugged steel case.
• Adjustable side exhaust.
• Slip-fit motor design for simple maintenance.
• Hardened steel motor parts.
• Choice of lever or lockout lever throttle. Ships Standard: with a 4" Wheel Guard.
• Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.



46ARAS Angle Grinder Series (0.9 H.P.)

Model 46ARASK steel case angle grinder with 4" guard and safety Lockout lever throttle. This tool features a smaller head design for better access to confined areas . This model is equipped with the world standard 3/8-24 x 0.98 Inch spindle so it can adapt to almost any situation. (most popular model) (Lightweight aluminum case is also available.)

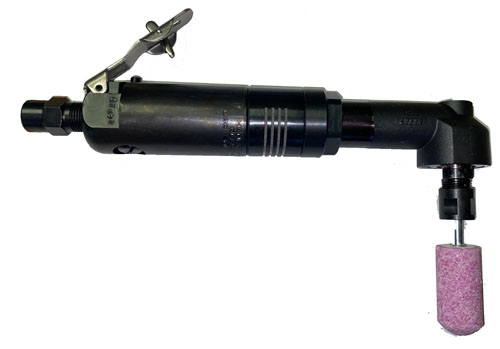

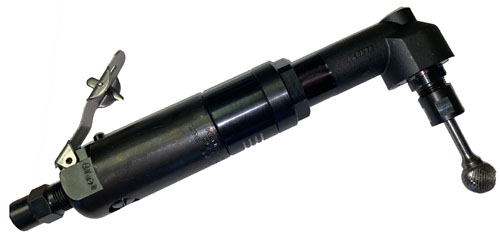

46ARAD Angle Grinders with Erickson Style Collet

Model 46ARAD Angle smaller head grinder with a steel case. This model features a standard SIDE exhaust and a Safety lockout lever throttle. Features an Erickson Style collet, for use with Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch or 3/8 inch.(Comes standard with 1/4" collet insert)(Lightweight aluminum case is available.)

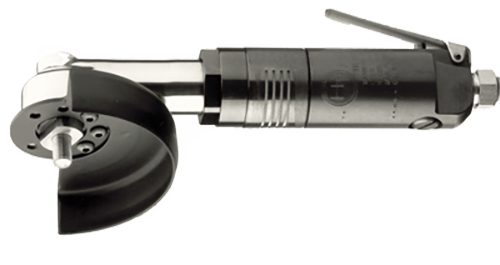

46RAWS Angle Grinder with a special short 3/8-24 x 0.58 Inch Spindle

Model 46ARASW Steel Right angle grinder shown. This tool has a special 3/8-24 x 0.58 Inch (This spindle is shorter and can only be used in special applications.) (Lightweight aluminum case is available.)



46ARA Series Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Speed	Spindle Type
46ARA	Standard Lever	Alum	13000 to 15000 R.P.M.	3/8-24 x 0.98 Inch (25mm)
46ARAS	Standard Lever	Steel	13000 to 15000 R.P.M.	3/8-24 x 0.98 Inch (25mm)
46ARASK	Safety Lockout Lever	Steel	13000 to 15000 R.P.M.	3/8-24 x 0.98 Inch (25mm)
46ARACSK	Safety Lockout Lever	Steel	13000 to 15000 R.P.M.	1/4 Inch Built-In Collet
46ARASW	Standard Lever	Steel	13000 to 15000 R.P.M.	3/8-24 x 0.58 Inch (15mm)(special spindle)

** Add Letter "K" to model number for Safety Lockout Lever



 48RA Series Right Angle Grinders (0.9 H.P.)



Industrial Benefits:

• Removable side dead handle (Dead handle placement can be maneuvered to either side of the tool.).
• (0.9 H.P) and a SIDE exhaust.
• One piece case design for a more comfortable grip.
• Geared to run at ( 9000-11000 RPM) (11000 RPM is standard). (Specify speed when ordering).
• Made in America.
• Taller gears Fully Responsive Industrial Power provide more power at a lower RPM.
• A stainless steel right-angle head that resists corrosion and is extra strong.
• Extra heavy-duty angle head and spiral bevel gears for long life.
• Aluminum or Steel case.
• Adjustable side exhaust deflector for redirecting air away from the operator or work piece.
• Choice of standard lever or safety lockout lever throttle.
• Applications: cutting, weld preparation and smoothing; rust removal; deburring and blending of steel, cast iron, and aluminum.



48RA Angle Grinder Series (0.9 H.P.)

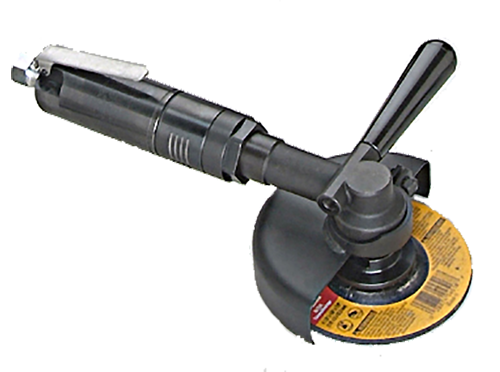

Model 48RA angle grinder with standard 3/8"-24 threaded spindle and 4" guard. (11000 RPM is standard). TALLER gears provide more power at a lower RPM.   Removable side dead handle (Dead handle placement can be maneuvered to either side of the tool.).

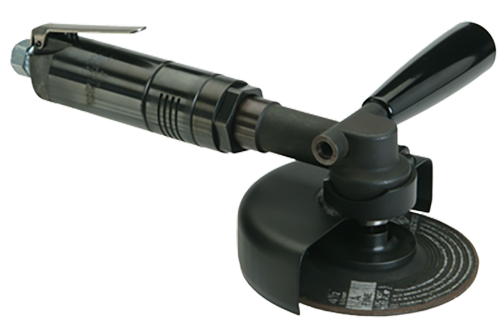

48RASZ Angle Grinder with 5/8-11 Spindle

Model 48RASZ angle grinder shown with a 5/8"-11 spindle and 5" guard. Removable side dead handle.   (Dead handle placement can be maneuvered to either side of the tool.).

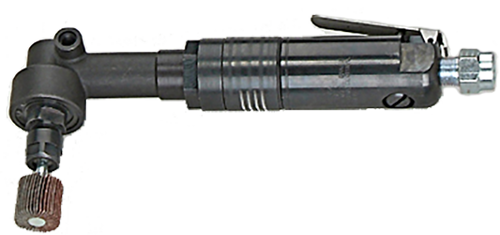

48RASD Angle Grinder with Erickson Style Collet

Model 48RASD Angle grinder features an Erickson style collet for use with carbide burrs, etc. (pictured with flap whee)l. (Side handle removed for clarity.)



48RA Series Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Speed	Spindle Type
48RA	Standard Lever	Alum	9000 to 11000 R.P.M.	3/8-24 x 0.98 Inch (25 mm)
48RAS	Standard Lever	Steel	9000 to 11000 R.P.M.	3/8-24 x 0.98 Inch (25 mm)
48RASZ	Standard Lever	Steel	9000 to 11000 R.P.M.	5/8-11 x 0.98 Inch (25 mm)
48RASD	Standard Lever	Steel	9000 to 11000 R.P.M.	Changeable Inserts(2 piece)Collet
48RASK	Safety Lockout Lever	Steel	9000 to 11000 R.P.M.	3/8-24 x 0.98 Inch (25 mm)

** Add Letter "K" to model number for Safety Lockout Lever





44RAE Extended Length Right Angle Grinders (0.9 H.P.)



Industrial Benefits:

• Henrytools popular 44RAE Extended Length series angle grinder.
• Geared to run at 11000RPM standard speed.
• Two piece case design provides a platform for easier tool maintenance.
• Taller gears provide more power at a lower RPM.
• Adjustable SIDE exhaust.
• An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
• A stainless steel right-angle head that resists corrosion and is extra strong.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum case.
• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4", 5" or 6" Wheel Guard

45RAE Extended Length Angle Grinder

Model 44RAEK Extended Length Right Angle Grinder pictured with 6" guard. (shown with safety lever lockout throttle). (11000 RPM standard speed) (Your choice of either a 4", 5" or 6" guard) (Specify: a 3/8"-24 spindle or 5/8" threaded spindle when ordering)



44RAEK Angle Grinder with 4" Guard (0.9 H.P.)

Model 44RAE Extended Length Right Angle Grinder pictured with 4" guard. (11000 RPM standard speed.  (Specify: a 3/8"-24 spindle or 5/8" threaded spindle when ordering) (See Specifications chart)



44RAECK Exended Length Angle Grinder with Collet Spindle

Model 44RAECK Extended Length Grinder with 1/4" Collet spindle. (Shown with carbide burr installed) (11000 RPM is standard)



44RAE Extended Length Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Speed	Spindle Type	Length
44RAE	Standard Lever	Alum	9000-11000 RPM	3/8-24 x 0.58 Inch (15mm)	11.18 Inch 284mm
44RAEZ	Standard Lever	Alum	9000-11000 RPM	5/8-11 x 0.98 Inch (25mm)	11.18 Inch 284mm
44RAEC	Standard Lever	Alum	9000-11000 RPM	Built-In 1/4" collet	11.18 Inch 284mm

** Add Letter "K" to model number for Safety Lockout Lever



45RAE Extended Length Right Angle Grinder (0.9 H.P.)



Industrial Benefits:

• Henrytools popular 45RAE Extended Length series angle grinder.
• Geared to run at 13500 RPM standard.
• Provides extra distance for the hands of the operator to be far away from the grinding wheel.
• Two piece case design provides a platform for easier tool maintenance.
• An industrial right angle grinder grinder ready to tackle your toughest grinding surface preparation needs.
• A stainless steel right-angle head that resists corrosion and is extra strong.
• Spiral-beveled gears provide smooth operation and long tool life.
• Removable side dead handle.
• Aluminum case.
• Adjustable exhaust direction side exhaust.
• Choice of lever or safety lockout lever throttle to avoid accidental startups.
• (Other guard sizes are available at no extra cost.)
• Important: (Specify guard size when ordering. ) You have a choice of either a 3", 4" ,5" or 6" Wheel Guard



45RAE Extended Length Angle Grinder (13500RPM) (0.9 H.P.)

Model 45RAE Extended Length angle grinder with a safety lock lever throttle and 4" guard. Tool runs at 13500 RPM standard. Provides extra distance for the hands of the operator to be clear from the grinding wheel.



45RA Extended Length Angle Grinder with 6" Guard

Model 45RAE Extended Length angle grinder with 6" guard and safety lockout lever throttle. Tool runs at 13500 RPM standard.

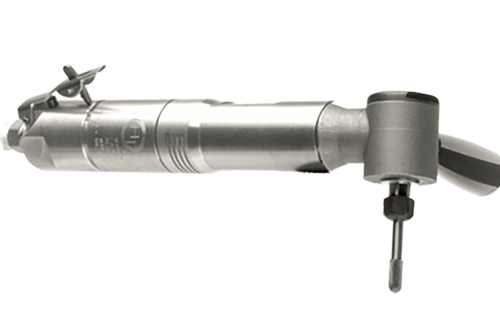

45RACE Angle Grinder with Built-In collet spindle.

Model 45RAECK Extended Length Grinder with Collet spindle for use with mounted stones or carbide burrs. (Shown with carbide burr installed) (13500 RPM is standard)



45RAE Extended Length Angle Grinder Specifications

Model	Throttle Lever Type	Case Material	Speed	Spindle Type
45RAE	Standard Lever	Alum	12000-14000 RPM (13500 RPM is Standard)	3/8-24 x 0.58 Inch (15mm)
45RAEZ	Standard Lever	Alum	12000-14000 RPM (13500 RPM is Standard)	5/8-11 x 0.98 Inch (25mm)
45RAEC	Standard Lever	Alum	12000-14000 RPM (13500 RPM is Standard)	Built-In 1/4" collet

** Add Letter "K" to model number for Safety Lockout Lever

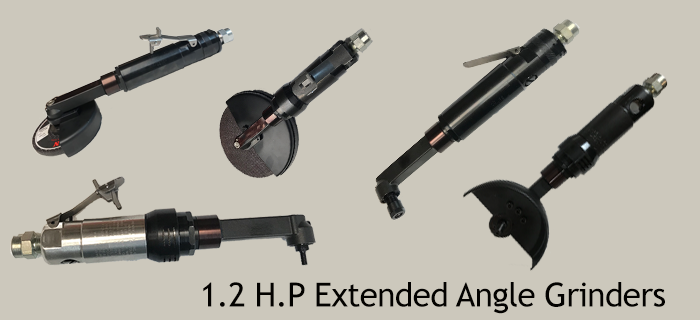

420RA / 425RA Series  Ultra Small Head Extended Angle Grinder (1.2 H.P.)



Industrial Benefits:

• Super Powerful 1.2 H.P. (900 W) motor.
• Grinder runs at 13000RPM standard.
• 1.0 Inch (25 mm) diameter ultra small head.
• Extended 4.5" length front end.
• ER Heavy Duty Collet spindle available (1/4" or 1/8" insert)
• 3/8"-24 Spindle models you choose 4" or 6" wheel guard.
• Available with SIDE or REAR Exhaust models. (See chart)



420RA Series Angle Grinders (1.2 H.P.)

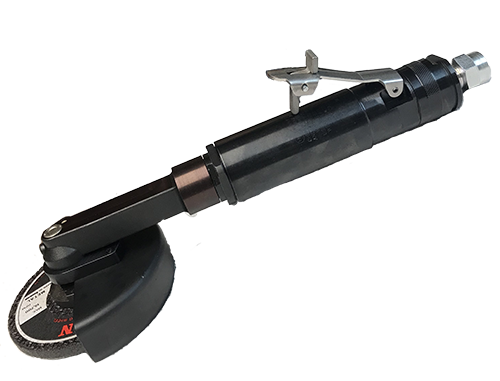

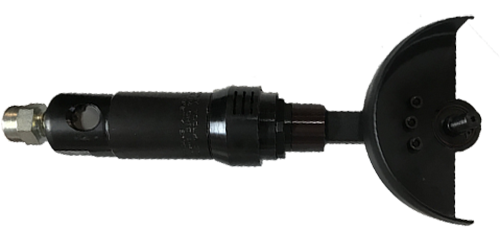

420RA4RK Ultra Small Head Angle Grinder with REAR Exhaust and 4" Guard. (1.2 H.P.) of serious grinding power. (shown with standard 3/8"-24 spindle for standard (Type 27) depressed center grinding wheels or   (Type 41)  Cut-off wheels).



420RA ULTRA Small Head Angle Grinder (1.2 H.P.)

420RA4SK Ultra Small Head Angle Grinder with SIDE Exhaust and a 4" Guard. (1.2 H.P.) (shown with standard 3/8-24 spindle for standard (Type 27) depressed center grinding wheels or (Type 41) Cut-off wheels).

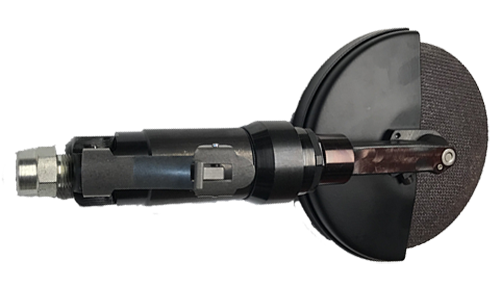

420RA6SK Ultra Small Head Angle Grinder with SIDE Exhaust

420RA6SK Ultra Small Head Angle Grinder with SIDE Exhaust and 6" Guard. (1.2 H.P.) (shown with standard 3/8-24 spindle for standard (Type 27) depressed center grinding wheels or (Type 41) Cut-off wheels). (13000RPM is standard)



420RARDS Ultra Small Head Angle Grinder with REAR exhaust

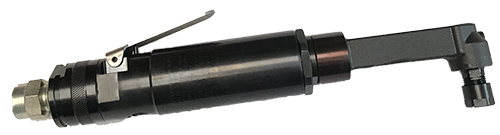

420RARDS Ultra Small Head Angle Grinder with steel case and REAR exhaust.   Features the ER Heavy Duty Collet spindle for use with mounted points and carbide burrs.  (13000RPM is standard)

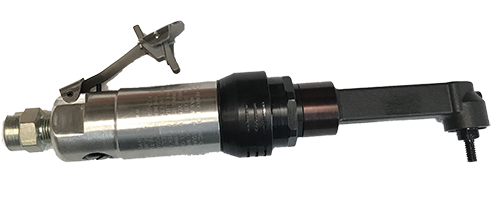

420RA6k Angle Grinder with SIDE exhaust (1.2 H.P)

420RA6K  Ultra Small Head Angle Grinder with SIDE Exhaust. Shown with Special   1/4"-20 Output Threaded Spindle.  This tool is used for polishing and surface conditioning/ contouring type applications.



425RA Spindle Types

Collet Spindle
3/8"-24 Spindle
1/4"-20 Special spindle
1/4"-20 Internal Spindle



425RA / 420RA Angle GrinderSeries

MODEL	Lever Throttle Type	Exhaust Direction	Spindle Type	Guards	Case Material
425RA4RK	Safety Lock (K)	Rear	3/8"-24 Thd.	choice of 4" or 6" Guard	Aluminum
425RA4RSK	Safety Lock (K)	Rear	3/8"-24 Thd.	choice of 4" or 6" Guard	Steel
425RA4SK	Safety Lock (K)	Side	3/8"-24 Thd.	choice of 4" or 6" Guard	Steel
425RA4K	Safety Lock (K)	Side	3/8"-24 Thd.	choice of 4" or 6" Guard	Aluminum
425RADS	Standard Lever	Rear	Collet choice of 1/4" or 1/8" insert	No Guard	Steel
425RAD	Standard Lever	Side		No Guard	Aluminum
425RADRS	Standard Lever	Rear		No Guard	Steel
420RADRSK	Safety Lock (K)	Rear		No Guard	Steel
425RA6K	Safety Lock (K)	Side	1/4"-20 thrd.	No Guard	Alum
425RAS6RK	Safety Lock (K)	Rear	1/4"-20 thrd.	No Guard	Steel
