Extended Die Grinders Page...

Henrytool die grinder applications include medium and heavy-duty grinding with straight, cone wheels, wire brushes and roll-type abrasives; and heavy-duty sanding and polishing.

Extended Die Grinders Page

Extended straight air die grinders are ideal for grinding, sanding, and shaping in an industrial environment. The additional length helps to facilitate work in hard-to-reach areas. All of these air grinders can use either carbide burrs or mounted grinding stones, available separately.   Some of these extended die grinders are designed specifically to be used with cutoff wheels.

Advanced Airtool Design...

The following models are enhanced for use in an industrial environment:

Extended Length Die Grinders

 Perfect for extremely demanding industrial  applications.

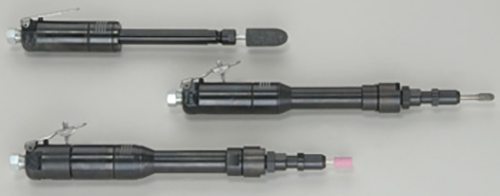

Multiple extended grindersMultiple extended die grinders

12GH Series Extended Die Grinder (0.3 H.P.)



Industrial Benefits:
  • 300 Series 1/4" collet.
  • 5" extended housing for hard to reach areas.
  • (0.3) H.P. and 25,000 RPM is standard.
  • Lightweight and easy to maneuver.
  • Side Exhaust.

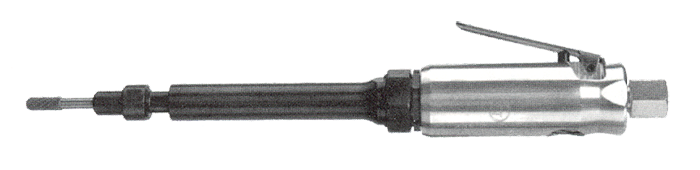

Model 12GHL extnded die grinder with 300 series collet.

Model 12GHL Extended Die Grinder with a 300 series 1/4" collet. Available in a variety of speeds.



12GH Series Extended Die Grinder Specifications
Model No. Throttle Type Exhaust Direction Speed Length Diameter
12GHL Lever Side 18,000 to
25,000
R.P.M.
7.6 inches /
193 mm
1.500”
38.1mm
12GHK Safety Lock Lever Side 7.6 inches /
193 mm
1.500”
38.1mm



12GH Series Extended Die Grinder Additional Specifications
Horsepower Speed Front Extension Length Weight Air Consumption Air Inlet
0.3 H.P.
(0.22 kW)
18,000 to
25,000
R.P.M.
5 inches 1.2 lb / 0.45 kg 19 cfm
(4.7 L/S)
1/4 inch






40AGH Series Extended Length Die Grinders (0.9 H.P.)



    Industrial Benefits:

    • An American world standard industrial type extended die grinder.
    • The 40AGHL Series extended grinders feature heavy-duty double row front bearings providing maximum spindle support.
    • Small diameter housing fits comfortably in the palm of your hand.
    • Extended housing allows two-hand operation.
    • Hardened steel motor parts for extended tool life.
    • Unitized motor provides easy maintenance.
    • Collet chuck and spindle models accommodate various mounted accessories.
    • Adjustable direction airflow side exhaust.
    • Available in either an aluminum or rugged steel case.
    • Choice of lever or safety lockout lever throttle.



40AGHLS Extended die grinder with collet

Model 40AGHLSK the world standard steel cased extended length die grinder with safety lock lever throttle. (Specify collet or guard when ordering .)

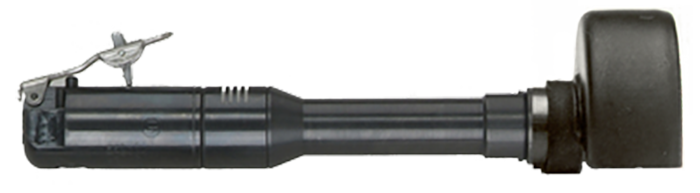

40AGHL Extended die grinder with 4" guard

Model 40AGHLSK extended die grinder with steel case and 4" wheel guard. (Specify collet or guard when ordering).



40AH Series Die Grinder Specifications
Model LeverType Case Material Weight Speed Spindle Type
40AGHL StandardLever Alum 2.8 Lb.
(1.3 Kg)
18000-
22000 R.P.M.
3/8-24 X 1.0Inch
40AGHS StandardLever Steel 4.1 Lb.
(1.9 Kg)
18000-
22000 R.P.M.
3/8-24 X 1.0Inch
40AGHK Safety Lock Lever Alum 2.8 Lb.
(1.3 Kg)
18000-
22000 R.P.M.
3/8-24 X 1.0Inch
40AGHSK Safety Lock Lever Steel 4.1 Lb.
(1.9 Kg)
18000-
22000 R.P.M.
3/8-24 X 1.0Inch

Your choice of the following when ordering:

  1. Guards: 4" (501-4A)
  2. Collets: HT-1010 (1/4" collet)
  3. Collets: Ht-1010-3/8" (3/8" collet)
40AH Series Die Grinder Additional Specifications
Speed Spindle Type Length DiameterFront Housing Motor Dia. Rated Power
18000-22000R.P.M. 3/8-24 X 1.0Inch 13.1 Inch
(334mm)
1.50 Inch
(38.1 mm)
1.6 Inch
(41 mm)
0.9 H.P.
675 W







Your choice of the following when ordering:
  1. Guards: 4" (501-4A)
  2. Collets: HT-1010 (1/4" collet)
  3. Collets: Ht-1010-3/8" (3/8" collet)

40EHL Series Extended Length Grinder (0.9 H.P.)



Industrial Benefits:
  • An all American world standard (0.9 H.P.) industrial type extended die grinder.
  • Features a longer super- narrow front end for grinding in previously inacessible areas.
  • Small diameter housing fits comfortably in the palm of your hand. Extended housing allows two-hand operation.
  • Tool is 13.1 Inch (334mm) in length. Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Adjustable direction airflow side exhaust. Available in either an aluminum or rugged steel case.
  • Choice of lever or safety lockout lever throttle.
  • *Tool is designed for type 1 or 27 grinding wheels. A collet can be attached for use with carbide burrs and flap wheels.



40EHLS extended die grinder

Model 40EHLS steel case extended die grinder with narrow front-end for grinding in confined areas. Total length of this extended tool is approx 12.7 inches. Super extended 40EH models are featured further down on this webpage.



40EHL Series Extended Die Grinder Specifications
Model LeverType CaseMaterial Speed SpindleType
40EHLS StandardLever Steel 15000-
22000RPM
EricksonCollet
40EHLSK Safety Lock Lever Steel 15000-
22000RPM
EricksonCollet



40EHL Series Extended Die Grinder Specifications
Weight Length Dia.FrontHousing MotorDia. RatedPower
3.5 lb
(1.6 kg)
12.7 inch
(232_mm)
.88 Inch
22.4mm
1.62 inch/
41 mm
0.9 H.P.
675 W



  • Capacity: Burrs/Mounted Stones of shank size 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch
  • *Tool is not designed for type 1 or 27 grinding wheels.



39GH Series Extended Die Grinders (0.9 H.P.)



Industrial Benefits:
  • The 3917 Series extended length die grinder features a narrow front-end housing for grinding in confined areas. (17" extended length front end.)
  • (0.9 H.P.)
  • Extended housing allows comfortable two-hand operation.
  • Hardened steel motor parts for extended tool life.
  • Unitized motor provides easy maintenance.
  • Adjustable airflow direction side exhaust.
  • Choice of lever or safety lockout lever throttle.
  • Quick change spindle design easily adapts tool to collet, 3/8-24, 1/2-13, or 5/8-11 spindle type.
  • Internal isolated sub-spindle and air motor design reduces vibration.
  • Slim extended length front-end reaches remote areas.

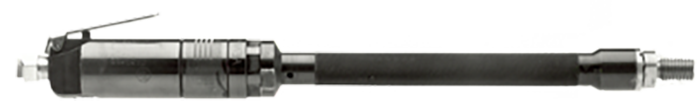

Model 3917GHLS exended length grinder with 5/8" Threaded Spindle. This tool features a very narrow front end extension.



3917G Extended grinder with 5/8 spindle with cone type wheel.

Model 3917GHLS Steel extended grinder shown with cone type wheel attached. (5/8" Threaded Spindle)

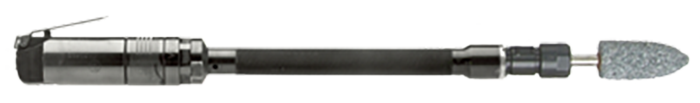

3917GH extended grinder with erickson type collet.

Model 3917GHLS Steel extended grinder shown with Erickson collet type spindle. (See chart for all the spindles that can be interchanged.)

  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
  • *** Add a "Z" to end of model number for a 5/8-11 spindle.
  • **** Add a "I" to end of model number for a 3/8-24 spindle.
  • ***** Add a "T" to end of model number for a 1/2-13 spindle.



3917GH Series Extended Die Grinder Specifications
Model LeverType Case Material Weight Speed Spindle Type
3917GHLS Regular Lever Steel 4 lbs.,
1.82kg
15000, 18000 or 22000RPM Choice of 3/8-24, 1/2-13, 5/8-11 x 1.000" (2.5cm) Long or 1/8", 1/4", 5/16", 3/8" collet insert.



3917GH Series Extended Die Grinder Additional Specifications
Dia. Front Housing Length Working Air Consumption Motor
Dia.
Rated
Power
1.120"
2.5cm
17"
(431mm)
25cfm
11.8 L/S
1.625"
2.5cm
0.9 H.P.
675 W



  • 3/8-24, 1/2-13, or 5/8-11 spindle type.



40AGH+6" Super-extended 19" length grinder (0.9 H.P.)



Industrial Benefits:
  • An American world standard industrial type super-extended die grinder.
  • (0.9 H.P.)
  • Features heavy-duty "DOUBLE ROW" front bearings providing maximum spindle support.
  • Small diameter housing fits comfortably in the palm of your hand.
  • Extended housing allows two-hand operation.
  • Collet chuck and spindle models accommodate various mounted accessories.
  • Adjustable direction airflow side exhaust.
  • Available in either an aluminum or rugged steel case.
  • Choice of lever or safety lockout lever throttle.
  • Capacity:
    4 Inch (100mm) Type 1 Wheels Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch (with appropriate collet). Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 3/8-24 Mounting Inlet Size: 1/4"
    Hose Size Recommended: 3/8" (10 mm). Working Air Consumption: 25 CFM

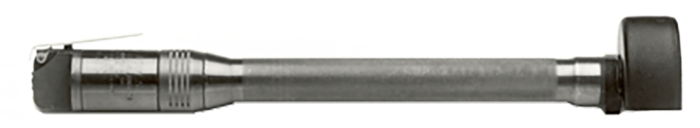

40AGH+6 extended die grinder shown with wheel guard.

Model 40AGHLS+6 Extended length die grinder featuring "double row" front bearings for superior spindle support. Specify when ordering: choice of collet or wheel guard.  Collet chuck and spindle models accommodate various mounted accessories.

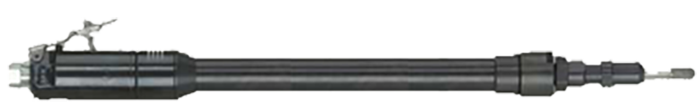

40AGH+6 extended die grinder with double row bearings. shown with collet.

Model 40AGHLS+6 Extended Length die grinder shown with HT-1010 collet for use with carbide burrs.



40AGH+6 Extended Die Grinder Specifications
Model LeverType Case Material Weight Speed Spindle Type
40AGHLS+6 Standard Lever Steel 5.8 Lb.
(2.6 Kg)
15000-22000
R.P.M.
3/8-24 X 1.0Inch
40AGHLSK+6 Safety Lock Lever Steel 5.8 Lb.
(2.6 Kg)
15000-22000
R.P.M.
3/8-24 X 1.0Inch



40AGH+6 Extended Die Grinder Additional Specifications
Length Diameter
Front Housing
Motor Dia. Rated
Power
19.1 Inch
(486 mm)
1.50 Inch
(38.1 mm)
1.6 Inch
(41 mm)
0.9 H.P.
675 W
19.1 Inch
(486 mm)
1.50 Inch
(38.1 mm)
1.6 Inch
(41 mm)
0.9 H.P.
675 W



    Capacity:
    4 Inch (100mm) Type 1 Wheels Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch (with appropriate collet). Any Type 16, 17, 17R, 18 or 18R Cone Wheels w/ 3/8-24 Mounting Inlet Size: 1/4"
    Hose Size Recommended: 3/8" (10 mm)
  • Working Air Consumption: 25 CFM

40EHL+6 Extended Length 18.7" Grinder (0.9 H.P.)



Industrial Benefits:
  • Super-extended die grinder 18.7" in Length.
  • Features a longer super- narrow front end for grinding in previously inacessible areas.
  • (0.9 H.P.)
  • Erickson collet chuck can accommodate various mounted accessories.
  • Adjustable airflow direction side exhaust.
  • Choice of standard lever or safety lockout lever throttle.
  • Tool Ships standard with a 1/4" Collet insert. Other sized collet inserts can be purchased: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.

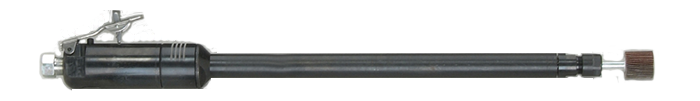

40EHL+6 extended die grinder with built in erickson type collet.

Model 40EHL+6" Extended Length die grinder shown with safety lockout lever throttle and flap wheel.



40EH+6 Extended Die Grinder Specifications
Model LeverType CaseMaterial Weight Speed SpindleType
40EH+6" StandardLever Steel 5.8 lb
2.6 kg.
15000-
22000RPM
EricksonCollet
40EHK+6" Safety Lock Lever Steel 5.8 lb
2.6 kg.
15000-
22000RPM
EricksonCollet

collet inserts can be purchased: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.

40EH+6 Extended Die Grinder Specifications
Length Dia.FrontHousing MotorDia. RatedPower
Longer 18.7 inch
(475 mm)
.88 Inch
22.4mm
1.62 inch
41 mm
0.9 H.P.
675 W



  • collet inserts can be purchased: 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch.

39GH Plus Series "Super Extended" Length Die Grinders (0.9 H.P.)



Industrial Benefits:
  • The Henrytools 39GH Serie super-extended length grinder are available in a 17", 22" or 27" length version.
  • (0.9 H.P.)
  • Quick change spindle design easily adapts tool to collet, 3/8-24, 1/2-13, or 5/8-11 spindle type.
  • Internal isolated sub-spindle and air motor design reduces vibration.
  • Slim extended length front-end reaches remote areas.
  • Adjustable airflow side exhaust.
  • Choice of lever or lockout lever throttle.



3927G super extended die grinder with 27" length.

Model 3927GHLSK featuring a staggering 27" overall length. Multiple spindle types can be ordered for this extended length grinder. (see specifications chart) (shown with safety lockout lever throttle)



3922GH Super extended die grinder. 22" length withErickson type collet.

Model 3922GHLSK featuring a 22" overall length. Multiple spindle types can be had for this extended length grinder.



3917GH extended die grinder. 17" length with 5/8-11 spindle

Model 3917GHLSK featuring a 17" overall length. Multiple spindle types can be had for this extended length grinder. (shown with safety lockout lever throttle) (5/8-11 spindle shown with cone wheel)

  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
  • *** Add a "Z" to end of model number for a 5/8-11 spindle.
  • **** Add a "I" to end of model number for a 3/8-24 spindle.
  • ***** Add a "T" to end of model number for a 1/2-13 spindle.
3917GH / 3922GH / 3927GH Super Extended Die Grinder Specifications
Model LeverType Weight Length SpindleType Length
3917_GHLS StandardLever 4 lbs.,
1.82kg
17"/
431mm
See Note 17"/
431mm
3922_GHLS StandardLever 4.5 lbs.,
2.05kg
22"
/558mm
See Note: 22"/
558mm
3922_GHLS Safety LockoutLever 4.5 lbs.,
2.05kg
22"
/558mm
See Note: 22"/
558mm
3927_GHLS StandardLever 5 lbs.,
2.27kg
27"/
685mm
See Note: 27"/
685mm
3927_GHLSK Safety LockoutLever 5 lbs.,
2.27kg
27"/
685mm
See Note: 27"/
685mm
  • NOTE:
  • 3/8-24, 1/2-13, or 5/8-11 spindle type. (specify which spindle you'd prefer while ordering)
  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
    *** Add a "Z" to end of model number for a 5/8-11 spindle.
    **** Add a "I" to end of model number for a 3/8-24 spindle.
    ***** Add a "T" to end of model number for a 1/2-13 spindle.



3917GH / 3922GH / 3927GH Super Extended Die Grinder Additional Specifications
CaseMaterial Speed Dia. Front
Housing
Motor
Dia.
Rated
Power
Steel 15000, 18000 or 22000RPM 1.120"/
2.5cm
1.625"/
2.5cm
0.9 H.P/
.675 W



  • NOTE:
  • 3/8-24, 1/2-13, or 5/8-11 spindle type. (specify which spindle you'd prefer while ordering)
  • ** Add a "C" to end of model number for a collet. (1/4" collet insert is standard).
    *** Add a "Z" to end of model number for a 5/8-11 spindle.
    **** Add a "I" to end of model number for a 3/8-24 spindle.
    ***** Add a "T" to end of model number for a 1/2-13 spindle.





MENU
